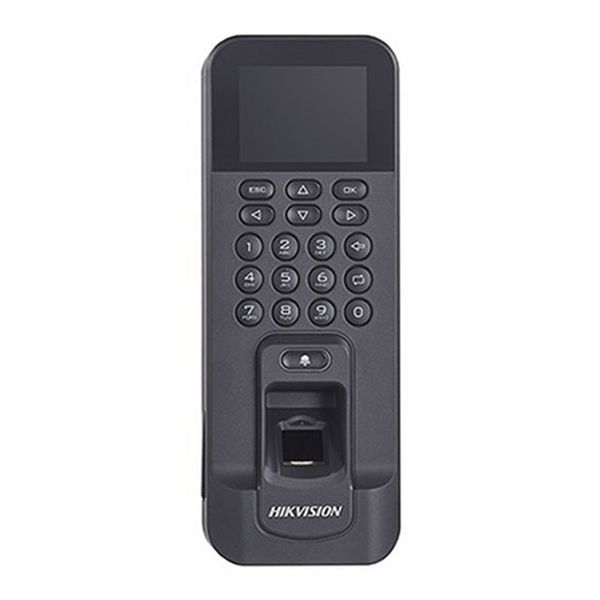

Controle De Acesso Hikvision Ds-k1t804mf Stand Alone Com Display Lcd

Controle de acesso biómetrico DS-K1T804MF Mifare é um terminal de acesso stand alone com conexão via Ethernet ou Wi-Fi com o ivms. Possui botão de campainha e display lcd e voz traduzida. Seus modos de autenticação são: Cartão, impressão digital, senha, impressão digital + senha e outros modos. Possui IP42 para maior proteção do equipamento.

General

Communication Interface: TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)

Working Temperature: -10 ° C to 55 ° C (14 ° F to 131 ° F)

Power Supply: 12 VDC/2 A

Audio: 1 Buzzer and 1 Loudspeaker

LED Indicator: Power/Status (Red/Green)

LCD Screen: 2.4-inch (320 × 240 LCD-TFT Display Screen)

Fingerprint Capacity: Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person

Storage: Up to 3000 Valid Cards;Up to 100,000 Event Records; Up to 150,000 Attendance Records

Card Reading Mode: Not Support

Input Interface: Exit Button × 1, Door Sensor × 1 and Alarm Input × 1

Output Interface: Relay (Lock Output) × 1, and Alarm Output × 1

Operating System: Linux

Fingerprint Comparing Mode: 1:1 and 1:N, N=3000

Card Reading Response Duration: < 1 s

Fingerprint Authentication Duration: < 1 s

FAR(False Accept Rate): ≤ 0.001 %

FRR (False Rejection Rate): ≤ 0.01 %

Fingerprint Recognizer: Optical Fingerprint Recognizer Module

External Card Reader: Standard Wiegand26/34

Card Reading Distance: 0 to 5 cm

Keyboard: Keyboard (Back Light)

Reset Key: × 1

Wi-Fi: Support

Wiegand Interface: Output: Wiegand 26/34;Input: Wiegand 26/34

Transmission Rate: TCP/IP: 10/100Mbps, Self-adaptive;RS485: 19200 bps-N-8-1

USB: USB 2.0; Type A
