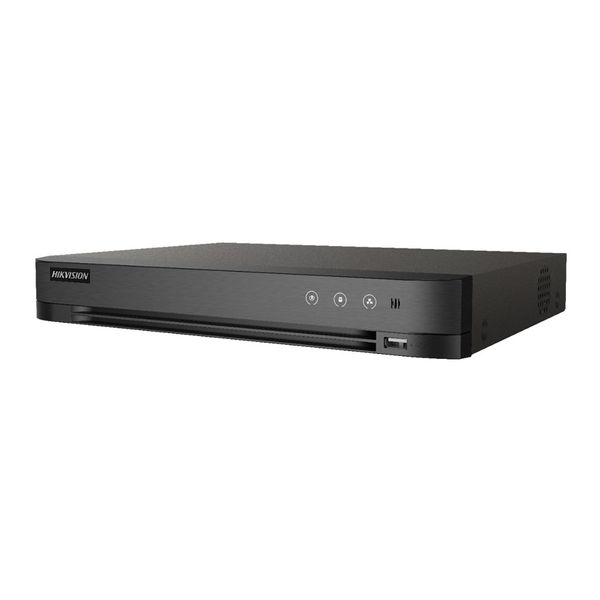

Dvr Hikvision 8/16 Canais (atÉ 8 Mp) Ids-7208huhi-m1/s

Recording

Compressão De Vídeo: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Resolução De Codificação:

Main stream:

8 MP@8 fps/5 MP@12 fps/

4 MP@15 fps/3 MP@18 fps

1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

WD1/4CIF/CIF@25 fps (P)/30 fps (N)

Taxa De Bits De Vídeo: 32 Kbps to 10 Mbps

Transmissão Dupla: Support

Tipo De Transmissão: Video, Video & Audio

Compressão De Áudio: G.711u

Taxa De Bits De Áudio: 64 Kbps

Video And Audio

Entrada De Vídeo IP: 4-ch (up to 12-ch)

          Up to 8 MP resolution

          Enhanced IP mode on:

          8-ch (up to 16-ch), each up to 4 Mbps

          Support H.265+/H.265/H.264+/H.264 IP cameras

Entrada De Vídeo Analógica? 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output:

HDMI:

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,

1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz,

1024 × 768/60Hz

VGA:

1-ch, 1920 × 1080/60Hz,

1280 × 1024/60Hz,

1280 × 720/60Hz,

1024 × 768/60Hz

HDMI/VGA Simultaneous Output

CVBS Input: PAL/NTSC

CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω),

           resolution: PAL: 704 × 576, NTSC: 704 × 480

Synchronous Playback: 8-ch

HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

AHD Input: 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps

Saída De Áudio: 1-ch, RCA (Linear, 1 KΩ)

Entrada De Áudio: 1-ch, RCA (2.0 Vp-p, 1 KΩ)

Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Rede

Protocolo De Rede: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Conexão Remota: 64

Interface De Rede: 1,RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary Interface

SATA: 1 SATA interface

Capacidade: Up to 10 TB capacity for each disk

Interface Serial: RS-485 (half-duplex)

Interface USB: 1 × USB 2.0; 1 × USB 3.0

Entrada/Saída De Alarme: N/A

Geral

Fonte De Alimentação: 12 VDC

Consumo: ≤ 10 W

Temperatura De Funcionamento: -10 °C to +55 °C (+14 °F to +131 °F)

Umidade De Funcionamento: 10% to 90%

Dimensões (L×P×A): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch); ≤ 2 kg (4.4 lb)
